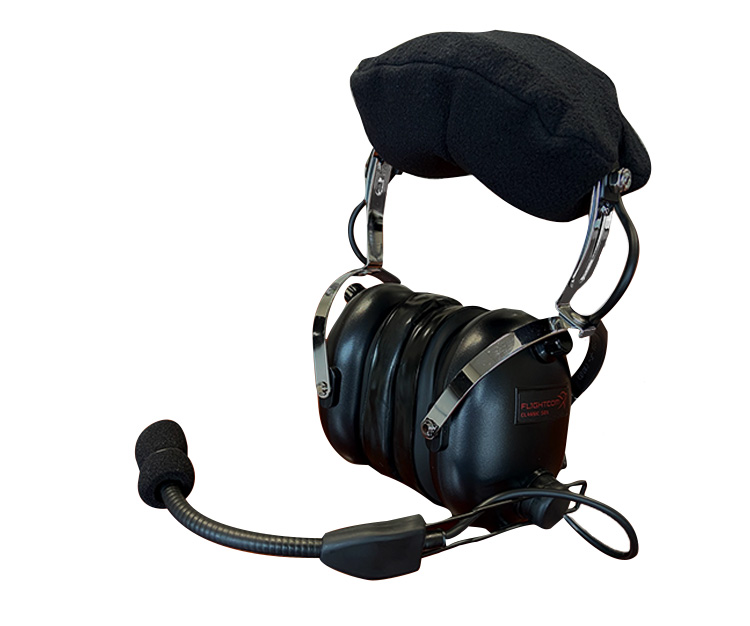

Flightcom Headset - 5DX Classic

A conventional general aviation style headset, the 5DX Classic ensures long-life ruggedness. The dual volume controls allow for independent volume adjustment in each ear dome. The precision flex boom, with noise canceling electret microphone, provides exact positioning. Now with a thicker headpad for improved comfort and a chrome headband.

• Comfortable and washable polar-fleece headpad
• Chrome headband
• Soft silicone gel ear seals
• Stereo/mono switch ensures audio compatibility
• NRR 22dB
• Weighs 19.7 oz.
• Mic muff and cloth ear seal covers included
• Lightweight carrying bag included
• 3-year warranty

HEADSET

• Sensitivity: 104 dB re .0002 microbar @ 1000 Hz, 1mW
• Frequency Response: 100-17,000 Hz +/- 5 dB in 6cc coupler
• Impedance: 600 ohms nominal, 150 to 1200 ohm source
• Weight: 17.9 ounces without comm cable
• Weight of comm cable: 3.1 ounces
• Shielded cable: Full floating with independent ground
• Noise Reduction Rating: 22 dB

MICROPHONE

• DC Bias Supply: 8 to 16 volts, not polarity sensitive
• Source Resistance: 220 to 2200 ohms
• Output Voltage: 370 mV @ 114 dB spl re .0002 microbar
• Frequency Response: Optimized for speech clarity and noise reduction
• Maximum Ambient
• Noise Level: 120 dB spl re .002 microbar
