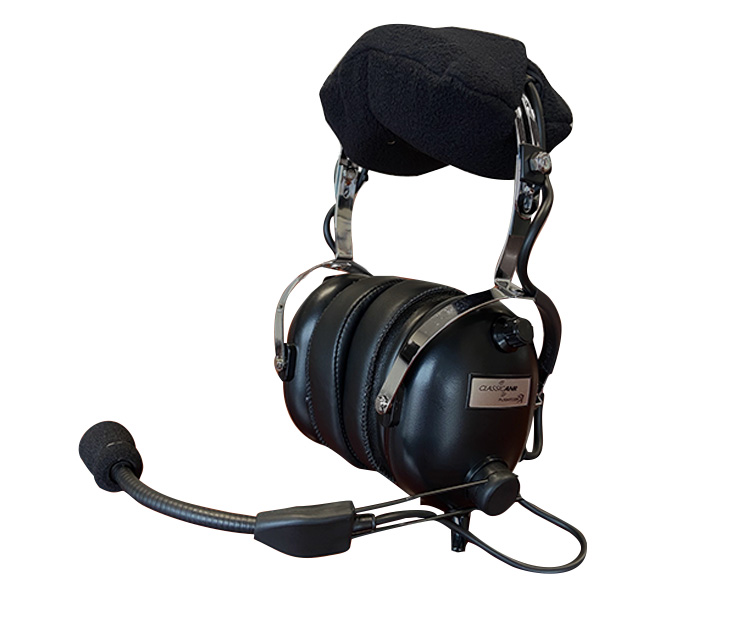

Flightcom Classic ANR Headset

The Classic ANR is built with comfort features not found in similar headsets. With overstuffed Confor® foam ear seals and an improved larger than normal headband pad, larger than normal headband, the classic aviation style provides extended comfort and performance.

• Precision flex boom with noise canceling electret microphone
• Dual-volume controls allow for independent volume adjustment in each ear dome
• Chrome headband with a washable polar-fleece headpad
• Stereo/mono switch ensures audio compatibility
• In-line, “drop-and-go” 9-volt battery
• Provides an additional 14-18dB noise attenuation at key low frequencies
• Mic muff and carrying case included
• Weighs 18.5 oz.
• 3-year warranty

HEADSET

• Sensitivity ANR Off: 98 dB re .0002 microbar @ 1000Hz, 1mW
• Sensitivity ANR On: 110 dB re .0002 microbar @ 1000 Hz, 1mW
• Frequency Response: 20-10,000 Hz +/- 10 dB in 6cc coupler
• Impedance: 300 ohms nominal, 150 to 1200 ohm source
• Weight: 18.5 ounces without comm cable
• Weight of comm cable: 4.0 ounces
• Shielded cable: Full floating with independent ground

MICROPHONE

• DC Bias Supply: 8 to 16 volts, not polarity sensitive
• Source Resistance: 220 to 2200 ohms
• Output Voltage: 370 mV @ 114 dB spl re .0002 microbar
• Frequency Response: Optimized for speech clarity and noise reduction
• Maximum Ambient Noise Level: 120 dB spl re .0002 microbar
