Damaged Screw Extractor - Titanium

Striped a screw head or broke a drill bit...these extractors will remove them. A pack with 6 different sizes and are titanium tipped.

Application - Remove broken or damaged screws.

Easy To Use - Just 3 easy steps. Removes every stripped screw in 10 seconds or less!

Material - These double tipped damaged screw removers are made of high speed steel 4341

Different Sizes - This screw remover set itself comes with five different sizes bits. Two sides can be used. So it can be used on any screw types / size. The hex shank 1/4" Threaded head design for better grip and better use

Contents - 6pcs damaged screw removers and a storage box.

Can Be Used On - Low carbon steel, 4.8/8.8/10.9/12.9 grade steel

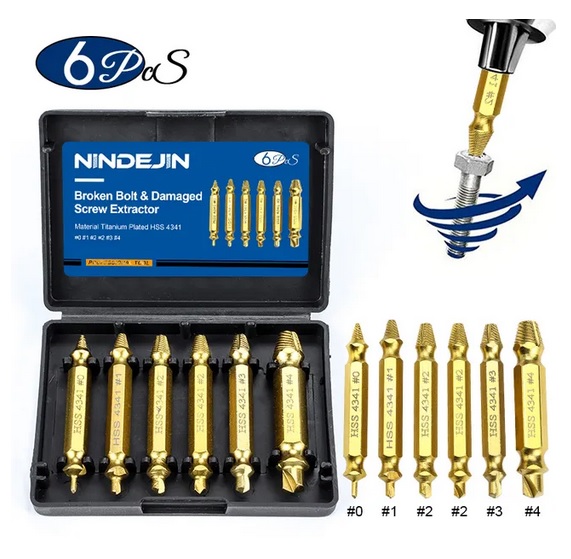

Package:
6 * screw extractor
1 * plastic case

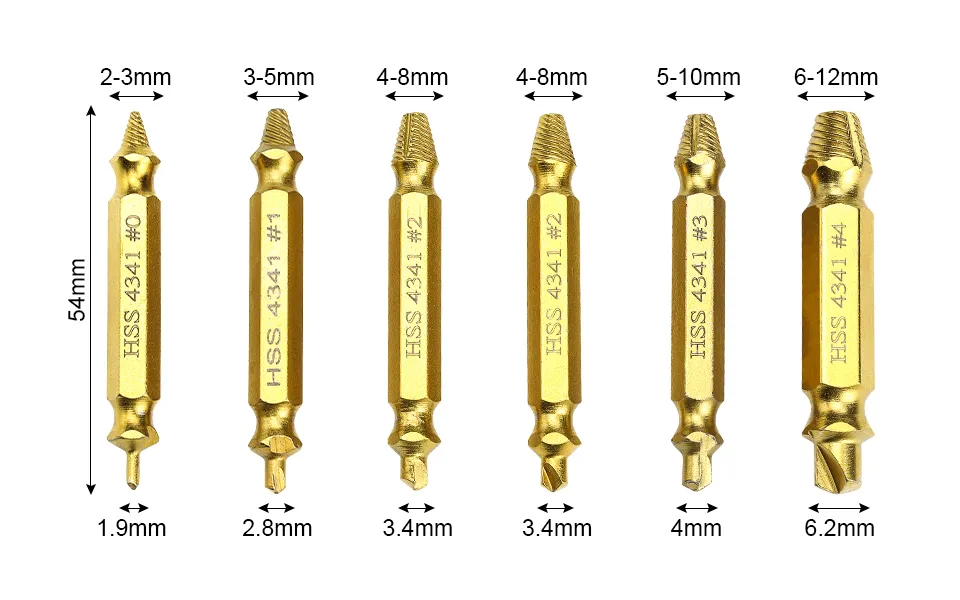

Remover 0 # diameter 2-3mm
Remover 1 # diameter 3 - 5mm
Remover 2 # diameter 4 - 8mm
Remover 3 # diameter 5 - 10mm
Remover 4 # diameter 6 - 12mm

How to choose a correct screw extractor?
Situation 1: If the stripped and damaged screws still has a hat (head), you can use single side screw extractor to remove it out, but other tools are needed, such as a drill bit, to drill a hole in the screw head.

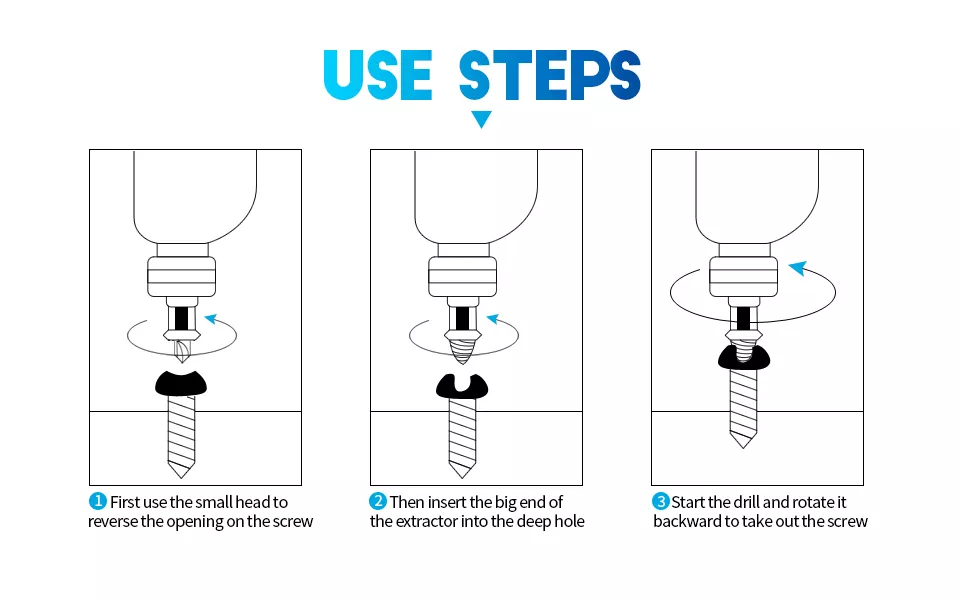

Situation 2: If you would like to remove the stripped and damaged screws without a hat (head), you can use double sides screw extractor to remove it out, firstly use one side (without thread) to drill a hole on the screw diameter, but you need to choose suitable size (0#,1#,2#,3#,4#), and then use the other side (with thread) to drill the damaged screw out.

Both these two situations above need to use in reverse.

Tips for using:

1. Firstly, using drill head to penetrate drill, be careful not to use the impact hammer gear, with the normal screwdriver gear.

2. Secondly drilling time to the slowest speed, there is a fixed speed with fixed speed, no in the end speed file a certain to be able to evenly rotate.

3. After the volley speed is stable and then aligned with the top of the screw center for a long time. Don't worry, be patient.

4. Then when you obviously felt drilled into and drilled for a while, and then for another.

5. The head rotates, puts the rotating head into the hole just drilled, presses and turns on the electric screws .It can be removed normally.

6. The whole process reverse operation!
