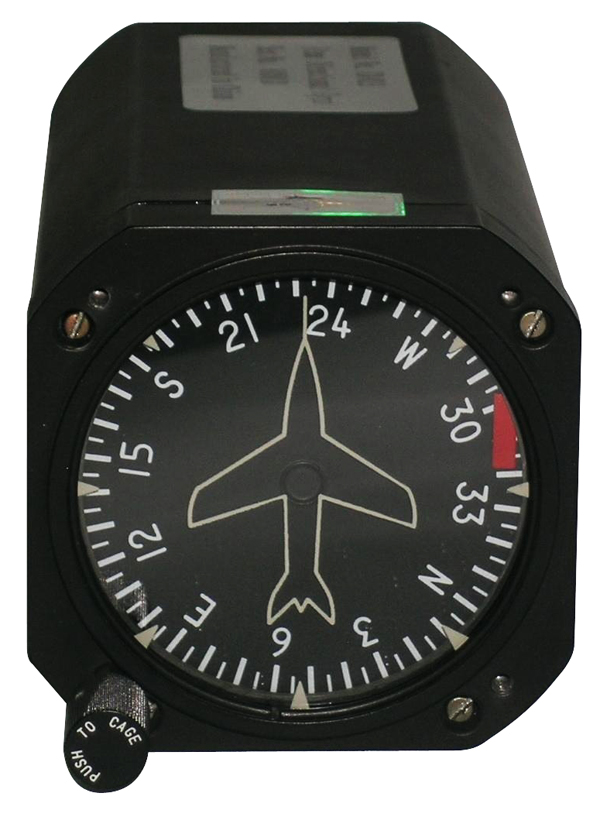

Directional Gyro - Electric and illuminated

This electric directional gyro is a high quality gyro providing smooth operation, long life, and reliability. It features a warning flag which is displayed when voltage drops below operation requirements, and the instrument is LED lighted with automatic dimming. A good choice for a wide variety of aircraft. Non-TSO'd.

Dimensions: 3-3/8"

Performance

• Working Range: Indicating heading angle within the range of 360°
• Accuracy: The drift error is not more than 4°/10 min.
• It will work normally when operating voltage is inputted 3 min; and rotor stars
• working when 80% operating voltage is inputted.
• Operating current is not more than 0.72A.
• Rated Rotating speed is 22000 turns per min: It warns when power-off the
• rotating speed is below 70% of the rate rotating speed.
• The insulating Resistance between the power and case is not less than 20M9.

Specifications

• Operating Voltage: DC. 14 ±1%V
• Ambient Temperature: -40 ~ +50°C
• Relative Humidity: It can reach 95% at 20 ± 5°C;
• Vibration Strength: not more than 1.5g
